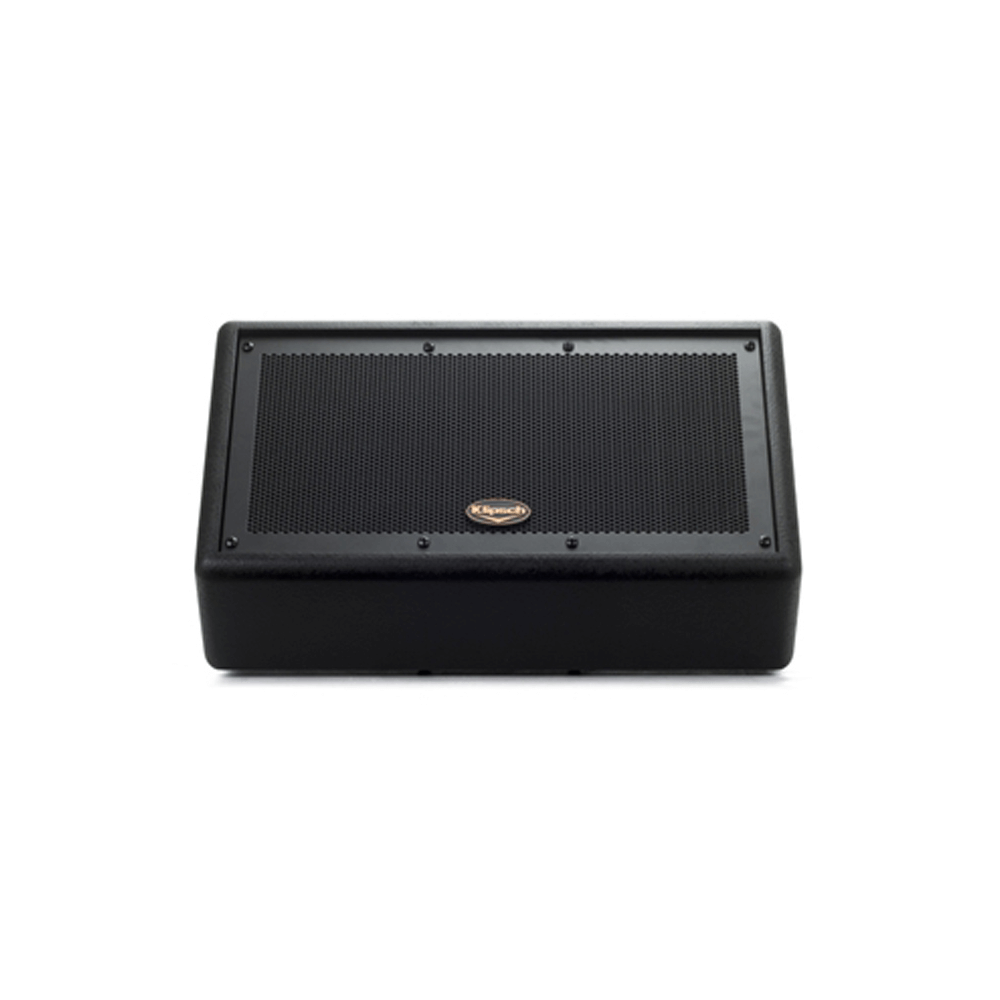

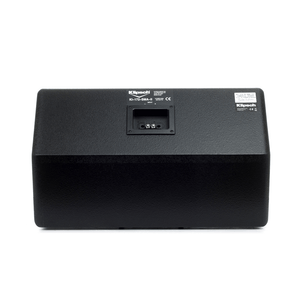

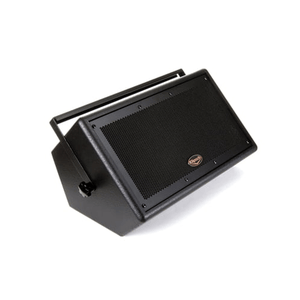

Klipsch KI-172-B-SMA-II Commercial Multi-Angle 2-Way Speaker (Each)

Vendor
Klipsch
Regular price
$999.00
Sale price
$999.00
Regular price
Sold out
Unit price
per

Klipsch KI-172-B-SMA-II Commercial Multi-Angle 2-Way Speaker (Each)

Powerful yet compact two-way, high performance loudspeaker with sides slanted at 65° and 45°, so you can have customized installation options.
Designed to be installed where placement at an angle is required and space is limited.
Perfect to use in restaurants, clubs, schools, churches, health clubs, shelf monitor use near altars and podiums, or in board and meeting rooms, performances and corporate environments, places where quality sound is required.

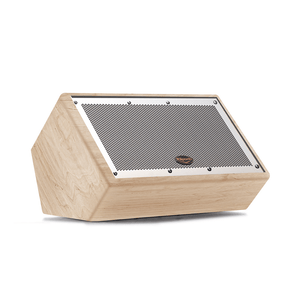

These have furniture grade plywood enclosure that utilizes CNC fabrication techniques that enhance suspension points, all this makes the speaker rugged and free from resonance and grants you long-term reliability.
Featuring internal high-current passive crossover features the proprietary high-power thermal overload, that helps limit potential damage to the high-frequency driver.
The dispersion angle is 90˚ X 90˚ nominal.


FEATURES

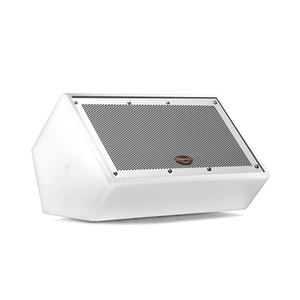

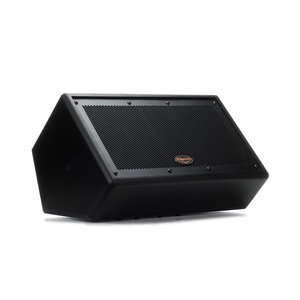

• Slanted sides at 65° and 45° for placement options at an angle or tight spaces
• High frequency driver protection
• 90° x 90° hybrid tractrix horn



SPECIFICATIONS

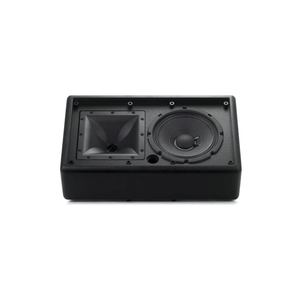

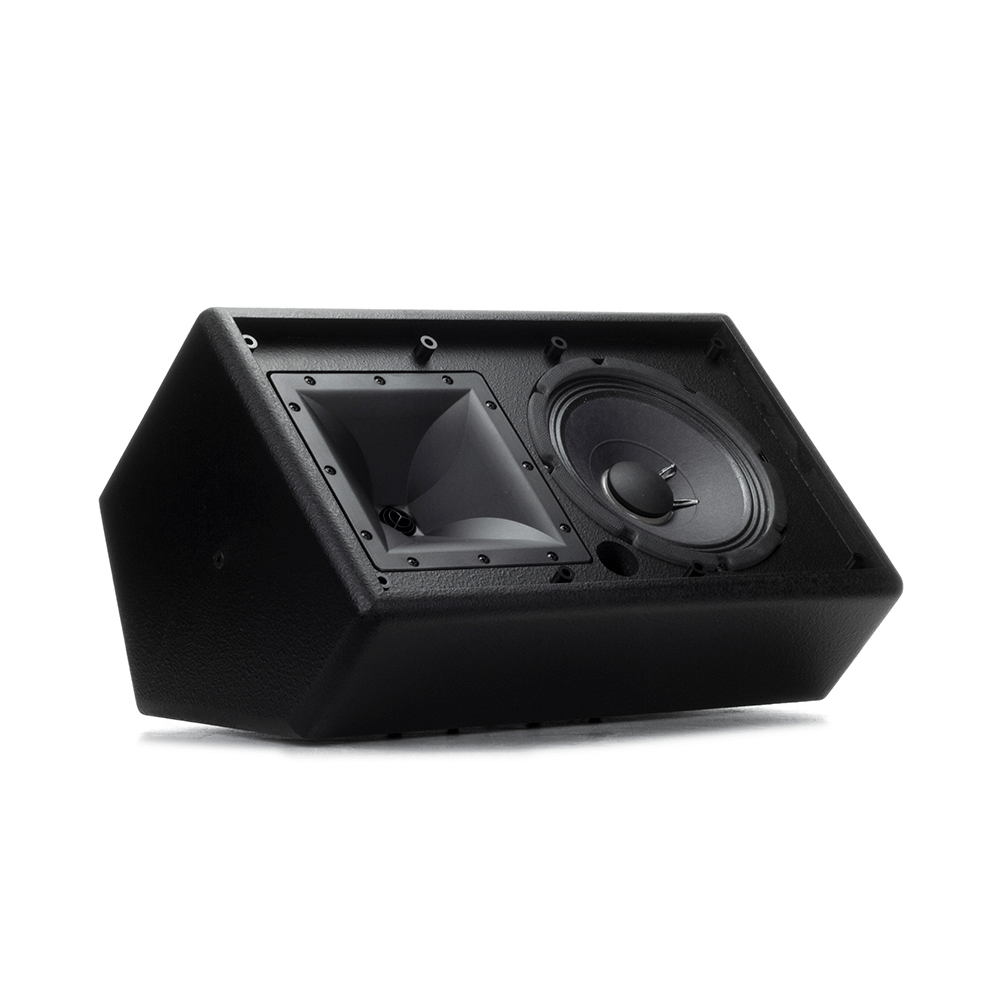

• Frequency Range ~ High: (1) K-103-TI-KP 1 inch titanium compression driver on a K-802-M horn
                                    Low: (1) K-81-ST 8 inch woofer
• Frequency Response ~ 74 Hz - 17 kHz (-10 dB @ 48 Hz) ± 3 dB
                                          Directivity Index - 7 dB +/- 1 dB 1 kHz - 17 kHz
                                          Directivity Factor - 5
• Speaker Dispersion Angle ~ Horizontal: 90° ± 30º 2.5 kHz - 20 kHz
                                                   Vertical: 90° ± 20º 2.1 kHz - 20 kHz

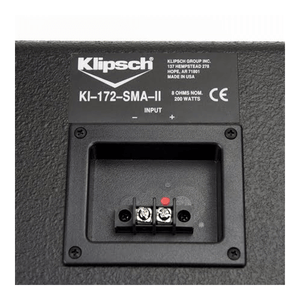

• Nominal Impedance ~ 8 Ohms, minimum 4.7 ohms @ 184 Hz
• Overload Protection ~ KLIP Overload Protection Circuit-HF
• Dimensions (W x H x D) ~ 18.9 x 11.5 x 10.6 inches
• Mounting ~ 4 - 1/4 inch - 20 for Mounting Bracket
                         2 - 1/4 inch - 20 for SB-102 Bracket
• Maxiumum SPL ~ 115 dB Continuous, 121 dB Peak
• Construction Enclosure ~ 3/4 inch MDF
• Power RMS ~ 200 watts (31V)
• Crossover Frequency ~ 2kHz
• Power Peak ~ 800W
• Sensitivity ~ 95 dB
• Weight ~ 27 lbs



In the Box

• AC power cord
• Grille
