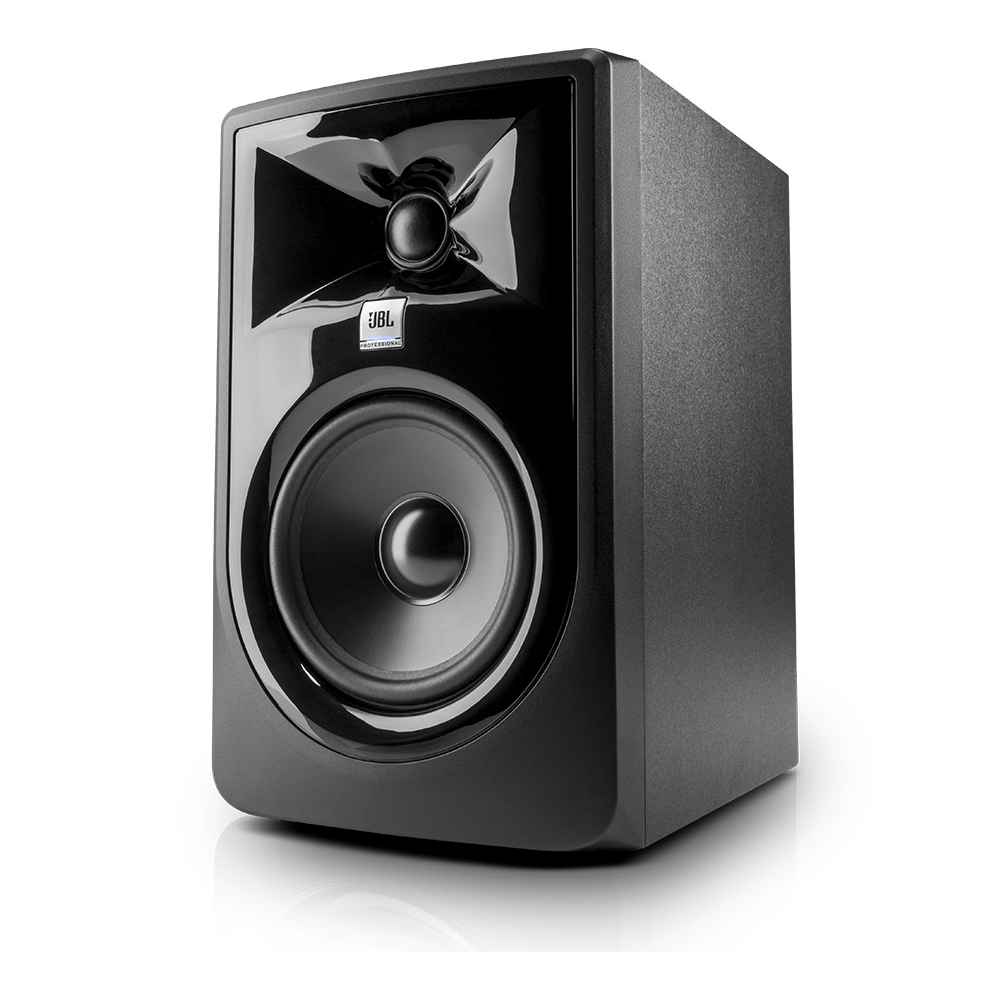

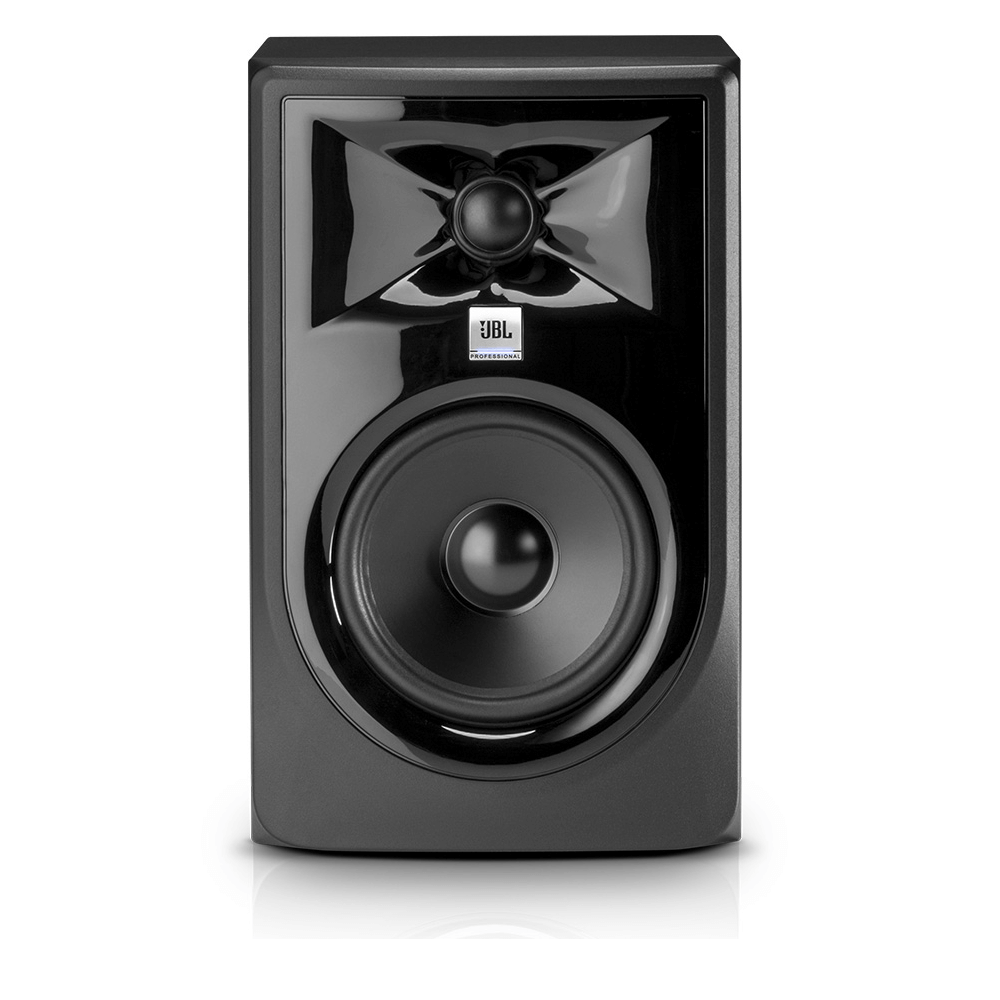

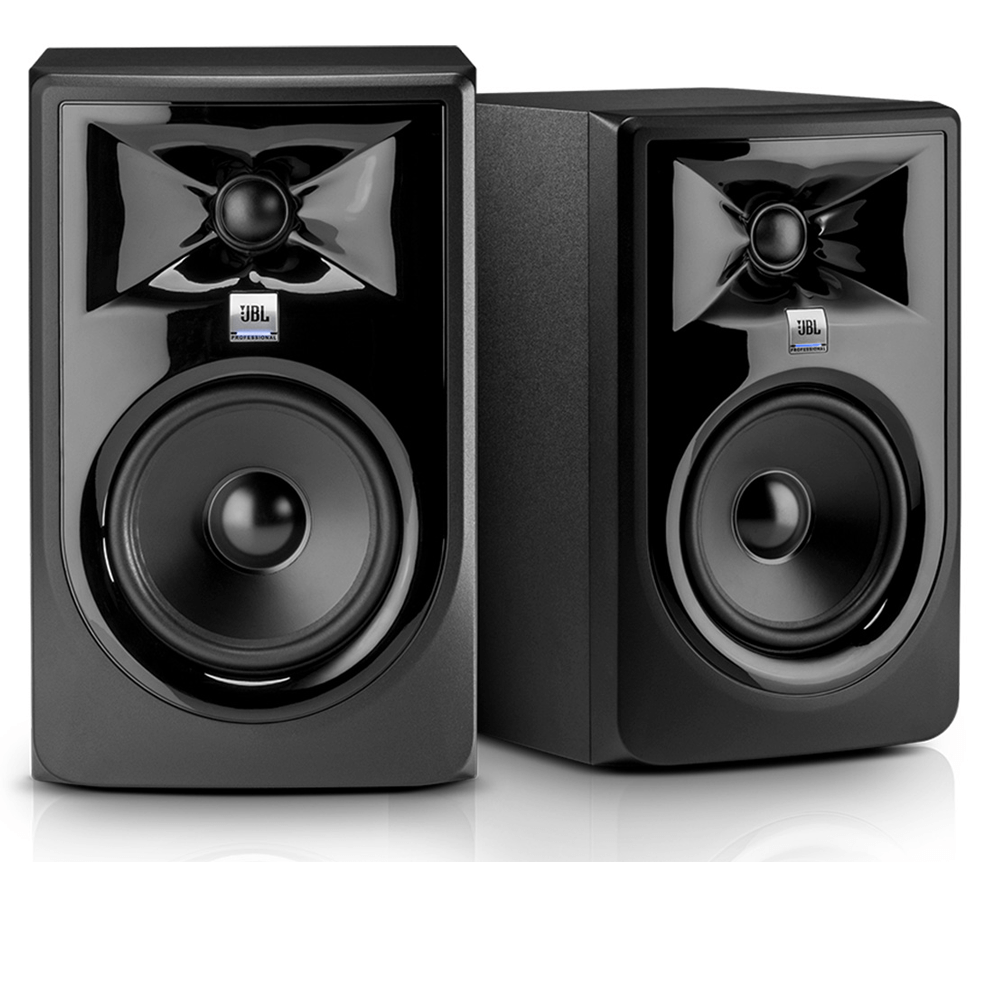

JBJ 306P MkII | Powered 6-Inch Two-Way Studio Monitor
• Very versatile ~ these are great for speaking events, music performances, live theater, and places of worship
• Electrical Distortion Criteria ~ 0.2% THD @ 1kHz / 2.83VRMS output; <1% THD @ 1kHz, full rated output
• System Distortion Criteria ~ <10% THD at maximum output with full compressor / limiter engagement
• Signal to Noise Ratio ~ 75dBA (A-Weighted), 70dBr (unweighted), relative to 2.83VRMS output
• Thankfully these are ok for use near magnetically sensitive equipment

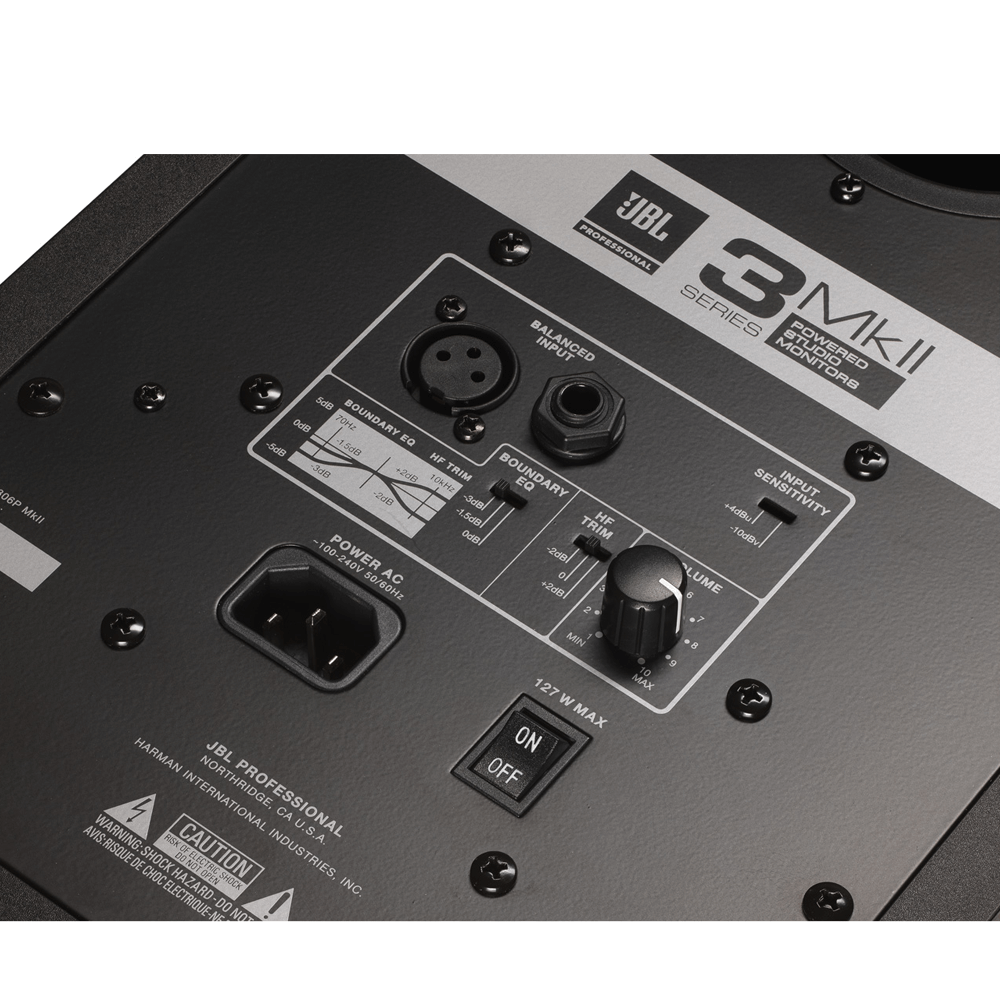

• Analog Input Types ~ 1 x XLR female, 1 x TRS female, balanced
• Maximum Peak Input Level ~ +6dBV / +20.3dBu (-10dBV / +4dBu)
• Sound Coverage Pattern ~ 120° x 90° (horizontal x vertical)
• Crossover ~ 1425Hz 4th order acoustic Linkwitz-Riley
• AC Input Voltage ~ 100 – 240VAC (±10%), 50 / 60Hz
• Dimensions ~ 14.2 x 8.8 x 11.1 in. (H x W x D)
• Input Sensitivity ~ 92dB / 1m (-10dBV Input)
• Frequency Response ~ 47Hz – 20kHz (±3dB)
• Frequency Range ~ 39Hz – 24kHz (-10dB)
• Low Frequency Extension ~ 39Hz (-10dB)
• HF Driver Power Amp ~ 56 W Class D
• LF Driver Power Amp ~ 56 W Class D
• Power Configuration ~ Bi-amplified
• HF Trim Control ~ -2dB, 0dB, +2dB
• Maximum Continuous SPL ~ 92dB
• Boundary EQ ~ LF Shelf @ 50Hz
• LF Driver Size ~ 165 mm (6.5")
• Weight ~ 6.1 kg (13.42 lbs)
• HF Driver Size ~ 25 mm (1")
• HF Driver Type ~ Soft dome
• Maximum Peak SPL ~ 110dB
• Upc: 691991007712
