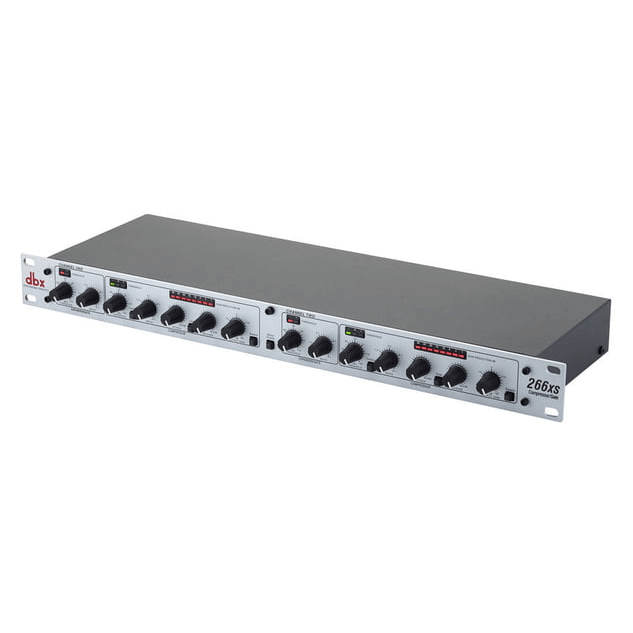

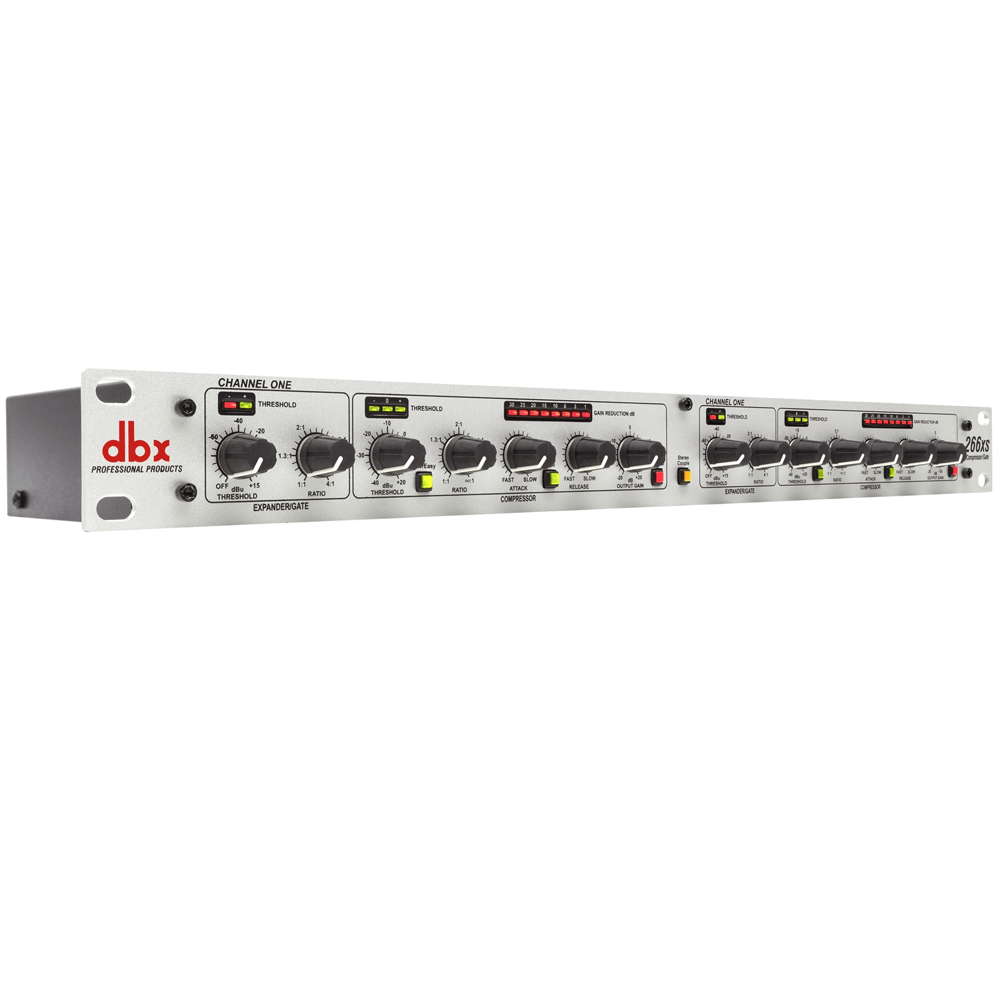

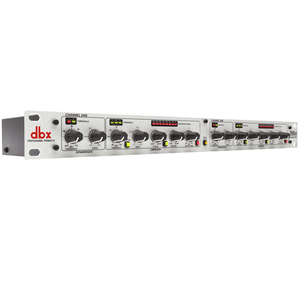

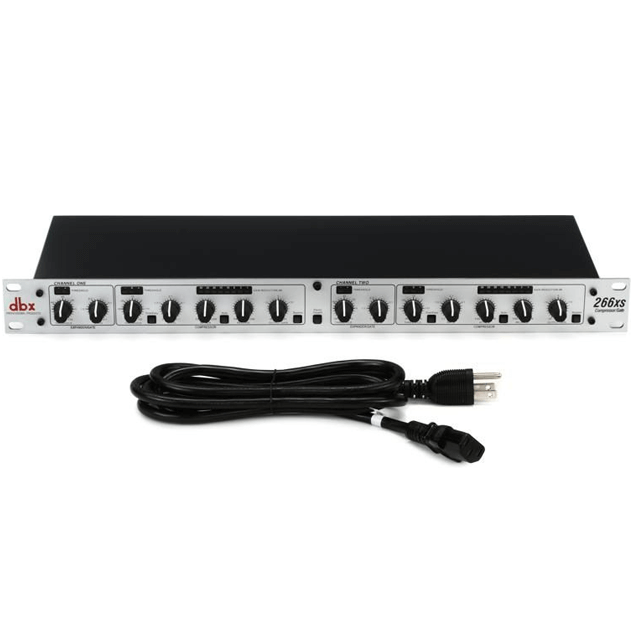

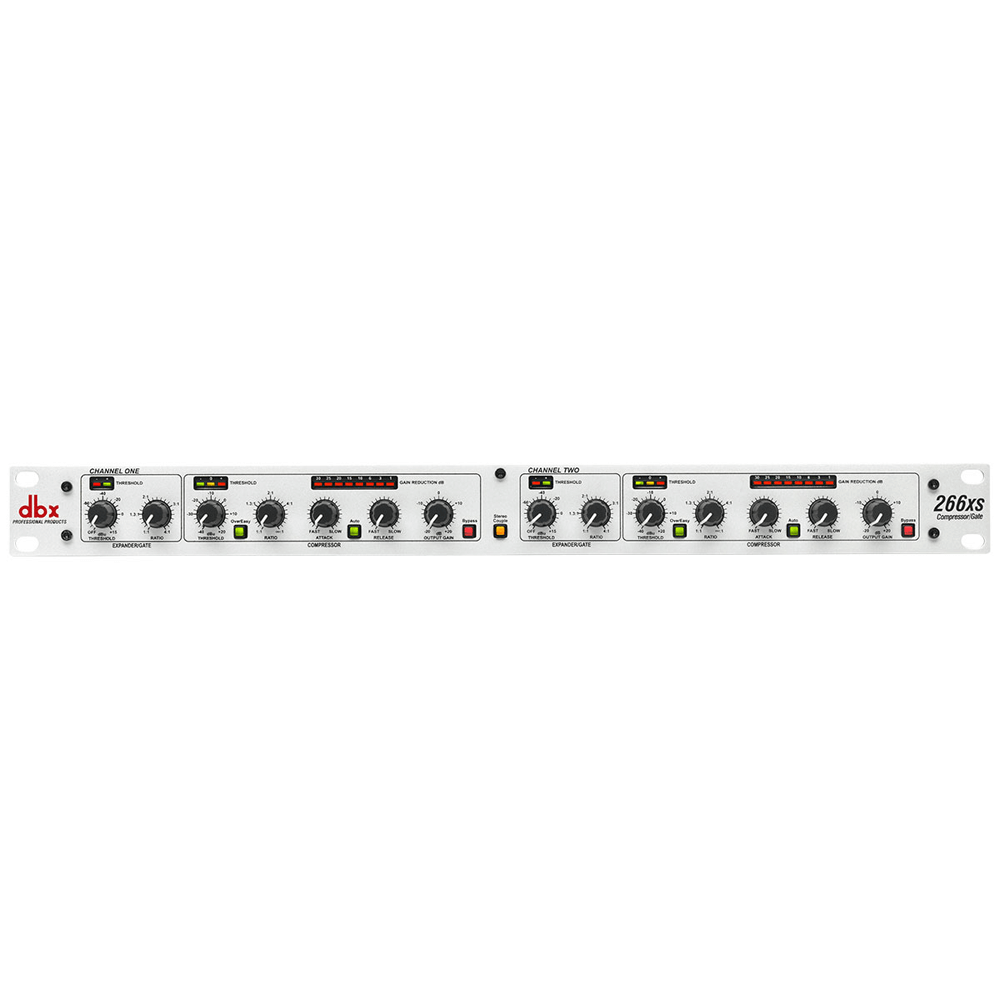

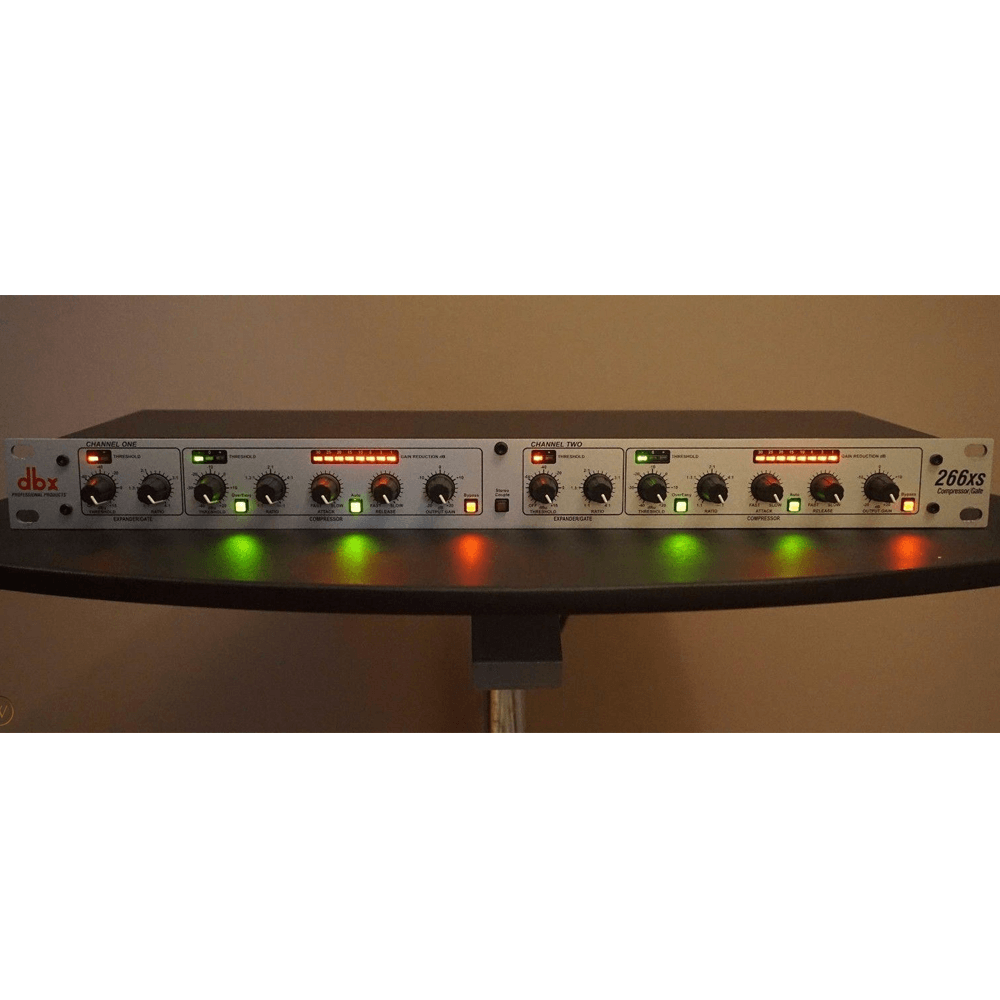

DBX 266xs Dual Compressor/Gate

FEATURES

• Separate precision LED displays for gain reduction, compression threshold and gate threshold allow quick, accurate setup
• Error proof operation to smooth uneven levels, add sustain to guitars, fatten drums or tighten up mixes
• New gate timing algorithms ensure the smoothest release characteristics
• Great sounding dynamics control for any type of program material

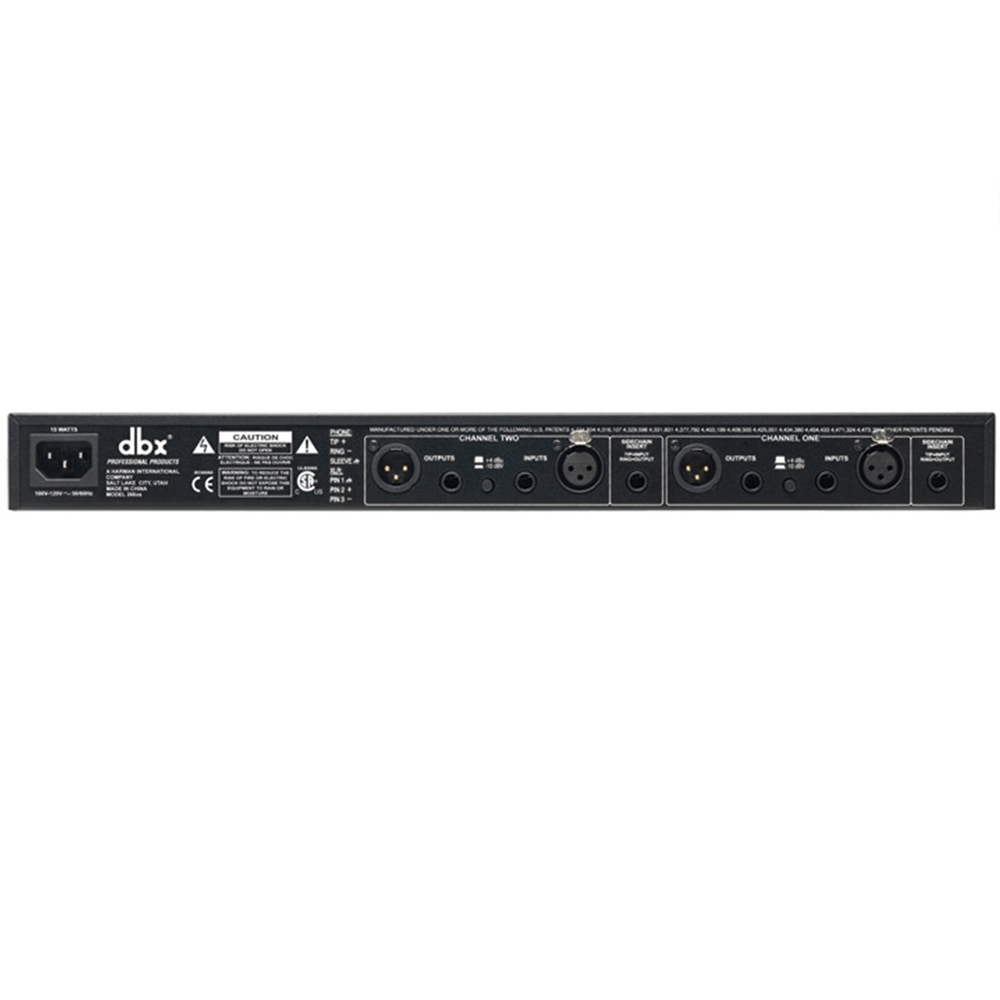

• Balanced inputs and outputs on 1/4" TRS and XLR connectors
• Program-adaptive expander/gates
• Stereo or dual-mono operation
• Classic dbx® "Auto" mode
• Side Chain insert

SPECIFICATIONS

• Max Output ~ >+21dBu balanced/unbalanced into 2kΩ or greater; >+18dBm balanced/unbalanced (into 600Ω)
• Output Impedance ~ +4dBu: 100Ω balanced, 50Ω unbalanced; -10dBu: 1kΩ balanced, 500Ω unbalanced
• Sidechain ~ 1/4" TRS Phone, Normalled: Ring = Output (send); tip = Input (return)
• Compressor Threshold Characteristic ~ Selectable OverEasy® or hard knee
• Compressor Release Time ~ Scalable Program-Dependent AutoDynamic™
• Compressor Attack Time ~ Scalable Program-Dependent AutoDynamic™
• Operating Voltage ~ 100VAC 50/60Hz; 120VAC 60Hz; 230VAC 50/60Hz
• Dimensions ~ 1.75" x 5.75" x 19" (4.45 cm x 14.6 cm x 48.26 cm)
• Sidechain Impedance ~ Tip = >10kΩ (Input), Ring = 2kΩ (Output)
• THD+Noise ~ Typically <0.2%; Any Amount of Compression @1kHz
• Input Type ~ Electronically balanced/unbalanced, RF filtered
• Noise ~ <-93dBu unweighted (22kHz measurement bandwidth)
• Output Type ~ Impedance-balanced/unbalanced, RF filtered
• Input Connectors ~ 1/4" TRS and female XLR (pin 2 hot)
• Operating Temperature ~ 0°C to 45°C (32°F to 113°F)
• Output Connectors ~ 1/4" TRS, female XLR (pin 2 hot)
• Sidechain Max Output Level ~ Ring = >+20dBu (Output)
• Frequency Response ~ Flat: 20Hz-20kHz, +0, -0.5dB
• Sidechain Max Input Level ~ Tip = >+22dBu (Input)
• Expander/Gate Threshold Range ~ -60dBu to +15dBu
• Inter channel Cross talk ~ <-95dB, 20Hz to 20kHz
• Expander/Gate Release Time ~ Program-dependent
• Compressor Threshold Range ~ -40dBu to +20dBu
• Input Impedance ~ 40kΩ balanced/unbalanced
• Max Input ~ >+22dBu Balanced or Unbalanced
• Stereo Coupling ~ True RMS Power Summing™
• CMRR ~ >40dB, typically >55dB at 1kHz
• Compressor Ratio ~ 1:1 to Infinity:1
• Power Consumption ~ 15 Watts Maximum
• Dynamic Range ~ >114 dB, unweighted
• Bandwidth ~ 0.35Hz - 90kHz, +0/-3dB
• Shipping Weight ~ 6.6 lbs (2.99 kg)
• Expander/Gate Attack Time ~ <100µs
• Expander/Gate Ratio ~ 1:1 to 4:1
• Reference ~ 0dBu = 0.775Vrms
• IMD ~ Typically <0.2% SMPTE
